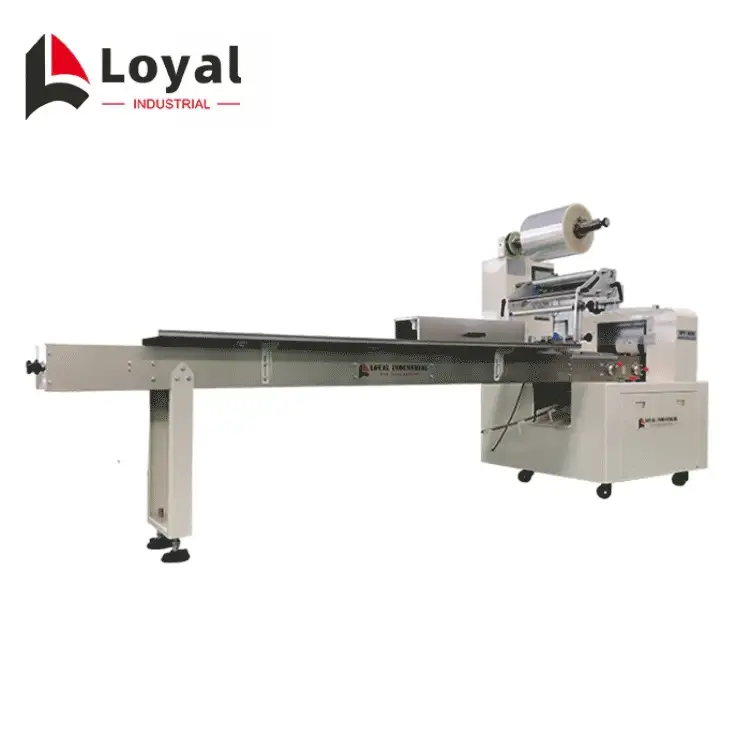

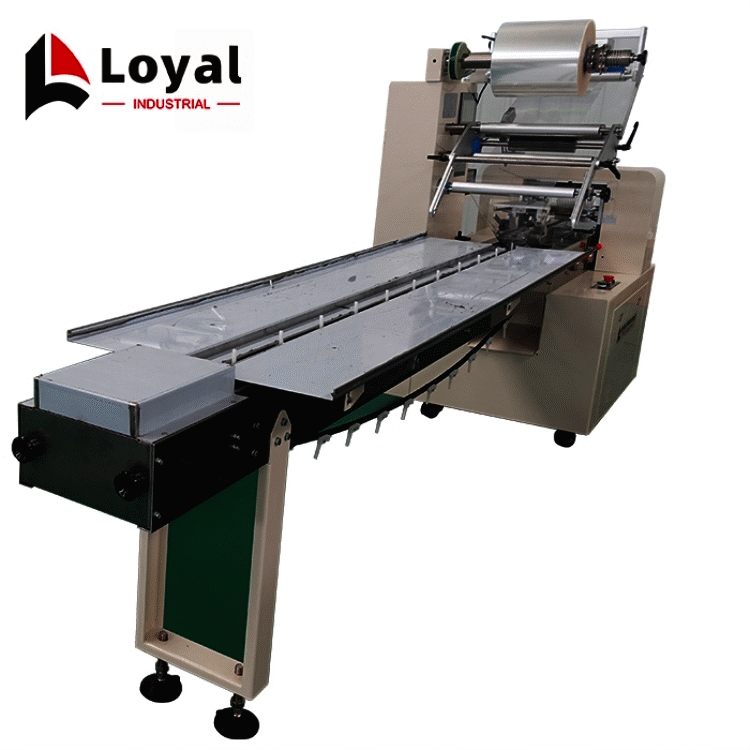

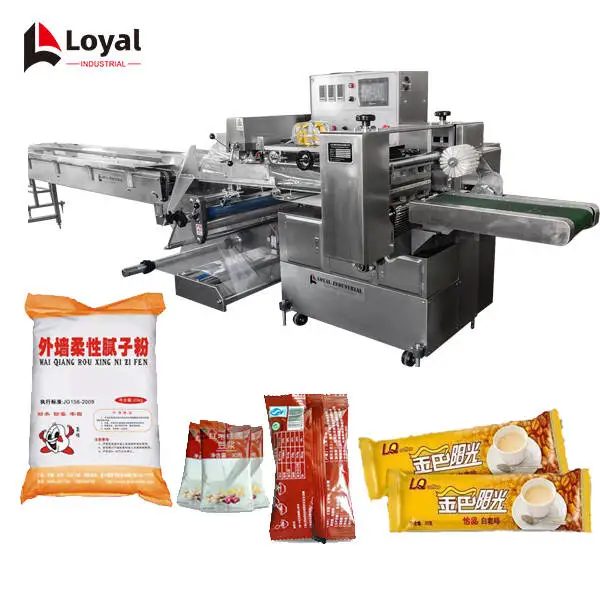

High Speed PLC Control Automatic Biscuit Packing Line For Biscuit Perfume Cigarett
Food packaging has a very important meaning in food processing. Reliable food quality. Coupled with high-quality packaging, can further attract consumers and promote sales. If manufacturers want to improve the quality of food packaging. They need not only good packaging design, but also high-quality packaging technology.It is widely used for packing candy, snacks, sweets, chocolates, coffee, potato chips, plantain chips, seeds, nuts, rice, animal feed, petfood, beans, sticky products, frozen products, sugar, salt, pharmaceutical products, chemical products.The features of this packaging machine are: Compact mechanical structure design, drives servo control, stable running, easy repair and maintenance, less breakdown, and low noise.With a super-intelligent touch screen and individual digital display temperature control system, it is simple to set parameters and convenient to change product size.
High Speed PLC Control Automatic Biscuit Packing Line For Biscuit Perfume Cigarett Specifications :
| Price | Contact us |
| Brand Name | LOYAL |
| Place of Origin | Shandong China |
| Min.Order Quantity | 1 |
| Payment Terms | T/T,L/C,D/P |
| Supply Ability | 100 |
| Delivery Detail | 20days--35days |
| Packaging Details | Wooden case or wooden pellets depended on clients' require |
High Speed PLC Control Automatic Biscuit Packing Line For Biscuit Perfume Cigarett Detail Introduction :
The working principle of the biscuit packaging machine is that the packaging film is formed after entering the former through the packaging film driving roller. After the packaged material is fed into the former by the feeding conveyor, it is longitudinally sealed and transversely sealed and cut, and then discharged by the output machine output.
PERFORMANCE AND OTHER INSTRUCTIONS
| PERFORMANCE AND OTHER INSTRUCTIONS |
| 1. The food contact location is made of stainless steel 304 material, which meets the food QS and pharmaceutical GMP hygiene requirements. |
| 2. Double frequency conversion system control, bag length is set and cut immediately, saving time and film. |
| 3. High-sensitivity electric eye automatic tracking, no need to manually adjust after setting, sealing and cutting size, accurate position, strong and beautiful sealing. |
| 4. Temperature independent PID intelligent control, stable temperature control, better suitable for various packaging materials. |
| 5. Color touch screen display, positioning shutdown, automatic fault diagnosis, the display is clear at a glance. |
| 6. Intelligent human nature parameter design, ordinary personnel can use it skillfully in a short time. Reduce the professional skills requirements of operators. |
| 7. A variety of cutting packaging shapes: straight, popcorn, corrugated, continuous bag, etc. |
| 8. Suitable for moon cakes, bread, biscuits, candies, medicines, daily necessities, hardware parts, paper boxes, plastic products or all kinds of solid objects with regular shapes. |
MAIN FEATURES OF BISCUIT PACKAGING MACHINE
1.It's convenient in controlling the bag length with advanced dual frequency conversion design.
2.Reasonable design and stable performance
3.Simple in operation with PLC full computerization.
4.Precise sealing and cutting with high precision photoelectric tracking system.
5.Positioned stop function without sticking to the reamer and wasting the roll film.
Technical Parameter of Biscuit packing line
| Technical Parameter of Biscuit packing line | ||||||||
| Model | Film Width | Bag Height | Bag Making Length | Bag Making Width | PackingSpeed | PowerSpecification | Size（L*W*H) | Weight |
| LY-250 | Max.250mm | Max.35mm | 65-160mm | 30-110mm | 35-220bag/min | 2.2kw/220v,50Hz | 3370*640*156mm | 500kg |
| LY-350A | Max.350mm | Max.45mm | 65-190mm | 30-110mm | 35-220bag/min | 2.2kw/220v,50Hz | 3370*640*156mm | 500kg |
Biscuit packing line
Applications of biscuit packing line

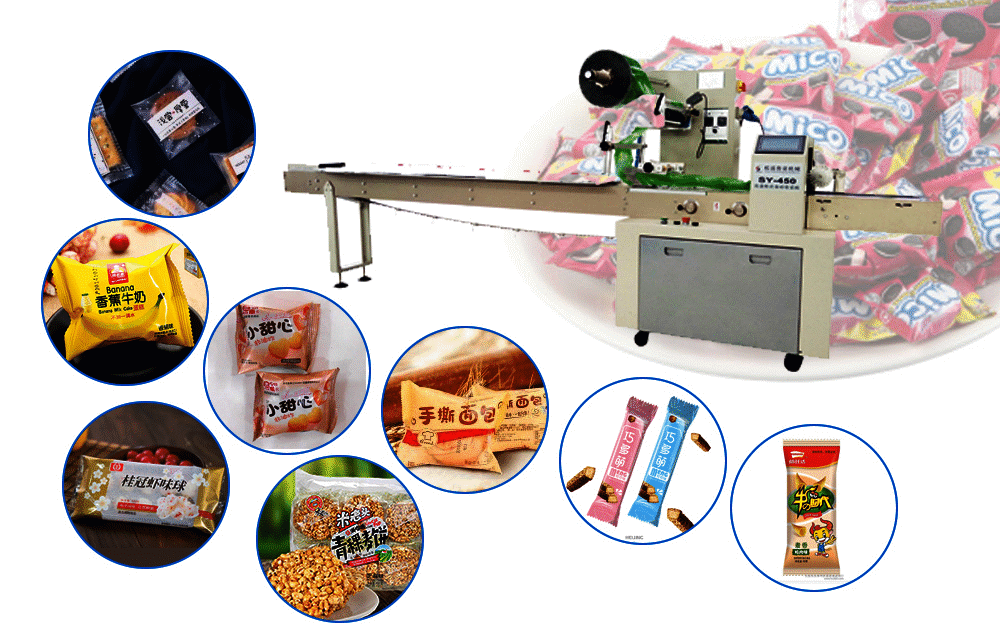

It's suitable for the pillow-type package of each kind of solid products such as biscuit, instantnoodle, bread, egg roll, moon cake, medicine, metal parts and loaded by paper box, or tray,etc.
Our biscuit packaging machine is not only affordable but also of good quality, which can pack a variety of products.
Finished product sample
THE SPECIFIC ADVANTAGES OF PACKING ARE AS FOLLOWS:
1.Convenient storage and transportation
2.Promote sales
3.Improve product value and brand awareness
Food packaging has a very important meaning in food processing. Reliable food quality. Coupled with high-quality packaging, can further attract consumers and promote sales. If manufacturers want to improve the quality of food packaging. They need not only good packaging design, but also high-quality packaging technology.
Which Market Did The Loyal Industrial Packing Machine?
Customer Case Of Powder Packing Machine At 2021 | |
1 | Four-Headed Packing Machine For Thailand Customer |
2 | Ten-Headed Packing Machine For Sale In Uzbekistan |
3 | Four-Headed Packing Machine for sale in Nigeria |
4 | Fourteen-Headed Packing Machine for sale in Nigeria |
5 | Four-Headed Packing Machine for send to India |
6 | Ten-Headed Packing Machine to sale in Canada |
7. | Four-Headed Packing Machine send to Egypt |
Customer Case Of Packing Machine At 2021 | |
1 | Pillow packing machine for sale in bolivia |
2 | Powder Packing Machine to lithuania |
3 | Seasoning Packaging Machine for sale in portugal |
4 | Mozambique carton sealer |
5 | Carton Sealer For Sale In North Korea |
Loyal’s Service
| Service for Pre-sale |
| 1.Provide technical parameter |
| 2.Factory layout and size suggestion |
| 3.Provide general formulation |
| 4.Custom-Design service |
| 5.Professional Advice about Market, machines, materials, packing |
| 6. Suggesting professional ship agent or helping book ship as customer request. |
| 7. 24 hours online service |
| Service for After-sale |
| 1.Allocation chart as the buyer's request will be supplied. |
| 2.Operation manual will be supplied after shipment. |
| 3.One year w arrantee, life time maintenance with cost price. |
| 4.Free easy broken spare parts will be sent with container . |
| 5.First installation can be done by engineer. |
| 6.Training workers in customer's factory. |
| Engineers available to service machinary overseas |
| 1.Free consultation service before, during, and after sales; |
| 2.Free project planning and design services; |
| 3.Free debugging of equipment until everything is functional; |
| 4.Free management of equipments' long distance shipping; |
| 5.Free training of equipment maintenance and operating personally; |
| 6.Free new production techniques and formulas; |
| 7. Provide 1 year complete warrantee and lifetime maintenance service |
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 20-30 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
30% is paid by T/T as the down payment, 70% is paid by T/T orL/C before shipment
Q:Guarantee?
Within 12 months
Q:Contact Information?
Any question please contact us!
PAXKING&SHIPPING--BISCUIT MAKING MACHINE
Shipment: Within 25-30 working days from the date of receipt the down payment.
Packing by Good quality material
Shipping by 20ft container or 40ft container
INTRODUCTION OF OUR FACTORY
We are a reliable factory located in the beautiful spring city of Jinan, China.
We have a complete management system ISO9001.
We are the largest food processing machinery manufacturer in Jinan, the main products: pet food machinery, snack machinery, fruit and vegetable cleaning and processing machinery, biscuit machinery, instant noodle machinery, pasta machinery, etc. food processing machinery manufacturers!
More than 20 engineers have more than 8 years of work experience and have traveled to more than 50 countries and regions.
Provide 24-hour telephone mail service to provide you with timely and feasible solutions.
LOYAL’S FACTORY PHOTO
22 experienced engineers is working for us whose job is to research new machines, design for clients, commission equipments for clients.24 Hours' service and 15 after sales service personnels help our clients to solve all the errors of our machines as soon as possible. With the development of our company,our products have been exported to more than eighty countries,such as the United States,,Poland,Canada,Mexico,Brazil and so We are committed to improve our service and keep the good quality in order to satisfy every customer.
THE FOLLOWING IS LOYAL HONOR
Our company has already exported countries
Asia {Japan,Thailand, Vietnam,Indonesia, South Korea, India, Bangladesh, Iran, Saudi Arabic, Turkey, Iraq, Israel, Kazakhstan, Tajikistan, Uzbekistan, Turkmenistan}
Africa { Nigeria, Algeria, Egypt, Ethiopia, Ghana, Namibia, Uganda, Zimbabwe,Angole,Senegal,Libya}
Europe { Russia, Ukraine }
North America(USA)
South America { Canada, Brazil, Bolivia }
If you have any needs for food machinery, please contact us, we will provide you with suitable high-quality products.And provide corresponding after-sales service.
